Trade Show Backdrop Checklist: What Venues Actually Allow

Brands and artwork shown are for illustrative purposes only.

A trade show backdrop is only as good as the venue rules it passes. Most exhibitors choose the graphic first and read the exhibitor manual second, then find out at bump-in that their lead is untagged, their stand blocks a hydrant or their lit wall has no power. The fix is to work backwards: confirm what the venue allows, then specify the backdrop to fit.

This checklist covers the questions to settle with the organiser and venue before you order, using the published rules of the Melbourne Convention and Exhibition Centre operations manual as a worked example. Every venue and every show sets its own conditions, so treat it as a list of questions, not a set of answers.

The short answer: five things to confirm first

• Power. Is it supplied to your stand, and will you need it for a lit backdrop, screens or chargers?
• Electrical compliance. Does every lead and device need to be tested and tagged before it comes on site?
• Materials. Does the venue restrict what your stand and graphics can be made from?
• Footprint and egress. Where are the aisles, exits, hydrants and fire cupboards relative to your space?
• Loads and fixings. Can anything be fixed to the venue, and what weight limits apply?

Get those answered in writing and the rest of the trade show backdrop brief becomes a design question rather than a compliance problem.

Power: decide backlit or unlit once you know the stand

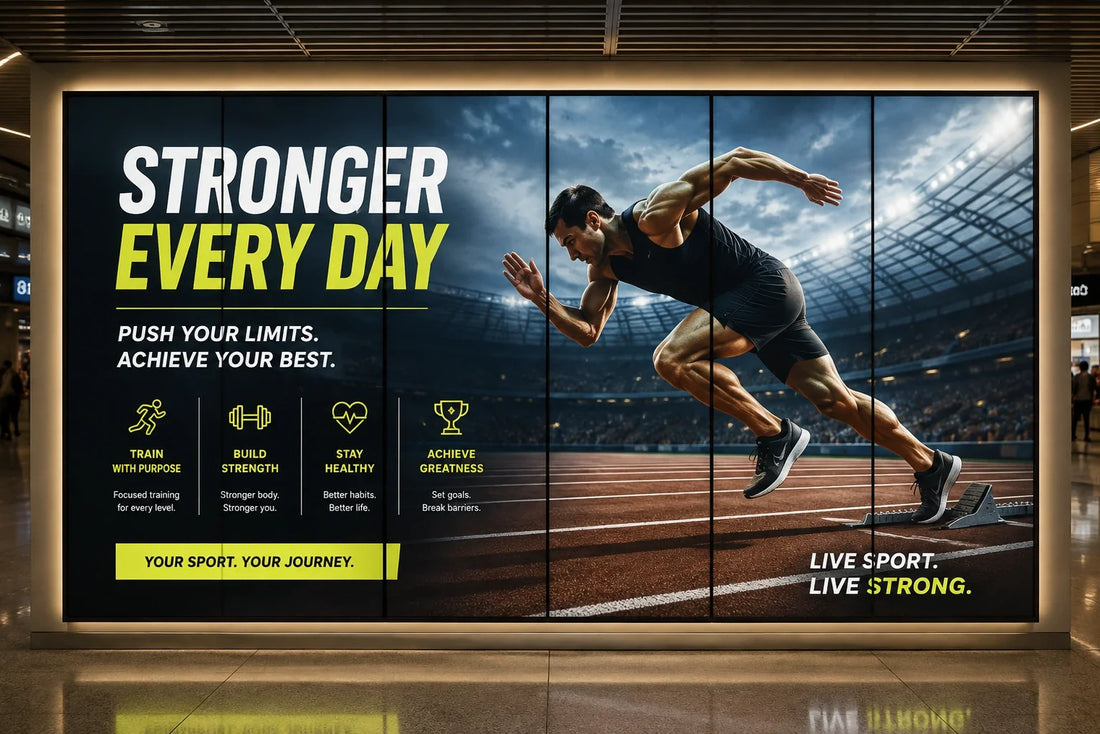

LYOLEY sells two types of kit. Modular kits are aluminium frames with tensioned, custom printed SEG fabric graphics and no lighting. Backlit display systems use the same frame system with LED backlighting built in and included in the kit price.

When an unlit backdrop is the better choice

An unlit frame needs no power at all. That makes it the simpler option for shell scheme stands, shows where power is an added cost, and stands that move between venues on a tight bump-in. If the hall lighting already falls evenly on your wall, a tensioned fabric graphic reads well without help.

When lighting the panel earns its place

A backlit frame lights the graphic from behind, which helps it hold contrast in a dim hall or against brighter stands on either side. It does need power at the stand, and it brings your electrical obligations into play. The trade-offs are covered in more detail in when lighting the panel is worth it.

Make the call before you order. A modular kit cannot be converted to backlit later, so a kit bought unlit stays unlit. If a lit stand is likely at a future show, order a backlit kit now. Backlit kits run from $1,395 for a single panel to $6,095 for six, including GST, and commercial quantities are subject to quotation. The sizes are compared in backlit display systems: choosing the size, and full inclusions are on the modular display system specifications page.

Test and tag every electrical item

Leave this late and it can hold up your stand. MCEC's exhibitor resources tell exhibitors to test and tag every piece of electrical equipment, and its operations manual requires electrical leads to be tested and tagged in accordance with Australian Standards before use on site. Temporary electrical installations at that venue must be carried out by registered electrical contractors.

The relevant standard is AS/NZS 3760, covering in-service safety inspection and testing of electrical equipment. WorkSafe Queensland explains that a durable tag must be attached after inspection and testing, showing the test date and the next scheduled test date. Requirements vary by state and by venue, so check the exhibitor manual for your show and ask a licensed electrician if you are unsure what applies.

For a lit backdrop, that means the lighting, its power supply and every extension lead you bring. Build the tagging into your timeline, not the night before bump-in.

Materials: ask for the documentation early

Venues control what goes into a stand. The MCEC operations manual requires stand construction materials to be in accordance with the Building Code of Australia, and lists materials such as crepe paper, cardboard, straw and untreated hessian as needing venue approval before use.

For any fabric backdrop, ask two questions before you order: what does this venue require of display fabrics, and what documentation will the organiser want to see? Then ask your supplier for that documentation in writing. It is far easier to sort out at the artwork stage than at the loading dock.

Footprint, aisles and emergency access

A trade show backdrop is often the tallest and widest thing on a stand, which makes it the element most likely to encroach. At MCEC, no stand or display may block an aisle, emergency exit or fire cupboard, and access to fire hydrants, electrical cupboards and sensors must stay clear. Aisles at that venue are to be no less than three metres wide.

Get the floor plan, mark the services around your space, and size the backdrop to the booth you actually have. A modular frame helps here because panel counts connect in any number: a two panel Double Wide Kit suits a narrow bay, while a six panel Studio Six Kit gives a full rear wall on a larger space.

Loads, fixings and freestanding builds

Check the load and fixing rules too. MCEC's exhibition bays are rated to 20 kPa, or two tonnes per square metre, and the venue requires written approval for heavy or vibrating equipment. The principle applies to every stand: ask before anything is fixed, hung or anchored.

LYOLEY frames lock to each other with tool-free Quick-Lock connectors, and mounting takes a simple trade tool set with minimal fixing and drilling. At a venue that fixing still needs approval, so confirm with the organiser what can be fixed and to what. Confirm at consultation whether your stand needs a freestanding configuration or will sit against a shell scheme wall, because that changes the build.

Timing and cost: order to the show date, not the week before

Business Queensland advises exhibitors to work out the total cost of a show, including booth hire, promotional items and the value of staff time, and to review the exhibitor agreement before signing up. A reusable backdrop changes that sum across a season: the frame is bought once and only the graphic changes between shows. The arithmetic is set out in what a modular display system actually costs over five years.

Lead time is the constraint to plan around. Every LYOLEY kit is made to order after a consultation. Order processing takes 1 to 5 business days, and production, freight and delivery are currently estimated at approximately 45 calendar days from the date the order and artwork are approved. Because each kit is made to your approved specification, there are no refunds, returns or exchanges for change of mind, which does not affect your rights under the Australian Consumer Law. The full position is in the terms and conditions.

Trade show backdrop checklist

• Exhibitor manual and floor plan received for this specific show
• Stand dimensions, height limits and shell scheme walls confirmed
• Backlit or modular kit decided before ordering, as a modular kit cannot be converted to backlit later
• Power supplied or ordered, if the backdrop is lit
• All lighting, power supplies and leads tested and tagged
• Venue requirements for display fabrics confirmed, with documentation from the supplier
• Aisles, exits, hydrants and fire cupboards clear of the build
• Freestanding or wall-backed configuration agreed
• Artwork approved in time for the 45 calendar day delivery estimate
• Bump-in and bump-out times and access conditions noted

The same frames serve retail walls and studio sets between shows, and the full range sits in the modular display walls collection. To size a stand for a specific venue and decide whether it needs to be lit, book a consultation.
